Introduction

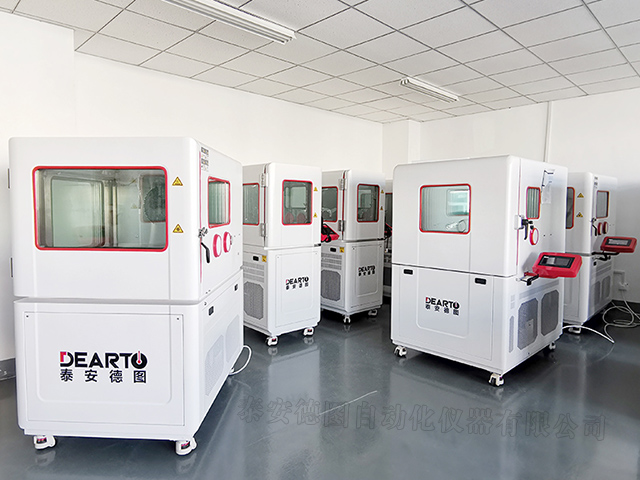

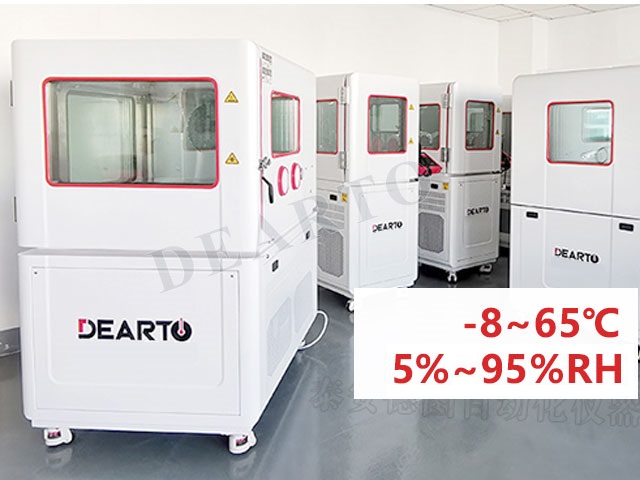

DTSL Temperature Humidity Calibration Chamber(Oversized Version) is a special verification device for detecting hair temperature humidity meter (gauges), wet and dry bulb thermometers, digital temperature humidity meter, and other various temperature humidity sensor. The equipment is accurately measured by a temperature humidity sensor and controlled by an industrial programmable controller, which can automatically adjust the humidity in the temperature humidity Calibration chamber. With high control and test accuracy, it can provide continuous and repeatable humidity measurement, suitable for scientific research and product testing.

Product advantages:

○ Excellent technology

Humidity control adopts the shunt method humidity generation principle. Compared with the dual temperature method humidity generation principle, the time required for stability is greatly shortened and the verification efficiency is improved.

Temperature control adopts liquid bath constant temperature and other plate heating technology, liquid medium heat radiation, the temperature is more constant, and the temperature field is more uniform.

The unique air circuit circulation design inside the measurement cavity ensures that there is no dead angle air flow; the frequency conversion technology is used to adjust the speed of the fan to ensure that the internal temperature field is even at low speed;

○ Product intelligence

Integration of measurement technology and internet of things technology, wifi remote control, make measurement easier.

High-definition touch screen control, multi-touch, greatly improve the user experience.

One-key start, fully automatic control, shorten the training period of measurement personnel.

Timing switch machine, remote switch machine, save time and improve verification efficiency.

○ Excellent quality

The outer shell adopts thick plate phosphating, passivation, spray plastic, anti-corrosion, anti-rust, salt spray resistance.

○ Liner adopts SUS304

High-precision sensor, using imported high-precision platinum resistance, Rotronic humidity sensor for temperature humidity control.

○ Can be upgraded to an automatic verification system

With the combination of intelligent image acquisition robot, dew point meter and industrial control computer, it can be upgraded to an automatic verification system of intelligent temperature humidity meter, which realizes the verification process automation, automatic record saving and report generation. It frees the measurement personnel from the reading and recording of the temperature humidity meter, greatly improving the verification efficiency and reducing the labor cost.

Function

○ HD touch screen

Using high-resolution capacitive screen, the display is clearer, multi-touch support, in line with customer mobile phone touch operation habits.

○ Wifi control

Mobile phone / pad remotely set the temperature humidity, start and stop the device, read the current temperature humidity values and fluctuations and other device status.

○ Status prompt

Real-time calculation and display of temperature humidity fluctuations, prompt to reach a stable state, U disk insertion detection, wifi connection prompt.

○ Curve display

Real-time display of temperature humidity curve, support touch zoom and pan operation, one-key screenshot to save the curve to U disk.

○ Data record

The temperature humidity data are automatically saved in xls format and exported to a USB flash drive with one click.

○ Timed start

The system has the function of timing start-up, which can realize the equipment start-up before work, and start working immediately after work without waiting.

○ Multi-point calibration

Supports multi-point calibration of temperature humidity sensor, and can perform multi-point corrections on temperature sensor indications to ensure consistency with the standard.

○ Segment control

The temperature and humidity are controlled by a segmented PID, which is fast and stable, and "zero" overshoot. The rapid and stable humidity rise from 40% RH to 60% RH takes only 15 minutes.

○ Fan speed regulation

The main circulation fan of the inner cavity adopts frequency conversion speed control, and the fan speed can be set through the touch screen.

○ Multiple protection alarm

Constant temperature tank overheating protection, liquid level alarm; reminder of water shortage in replenishing tank; compressor overheating alarm, start-stop protection function.

○ Communication extension

Equipped with network port, wifi interface, USB interface, RS-232 interface, can communicate with PC to realize data reading and system setting.
