Introduction

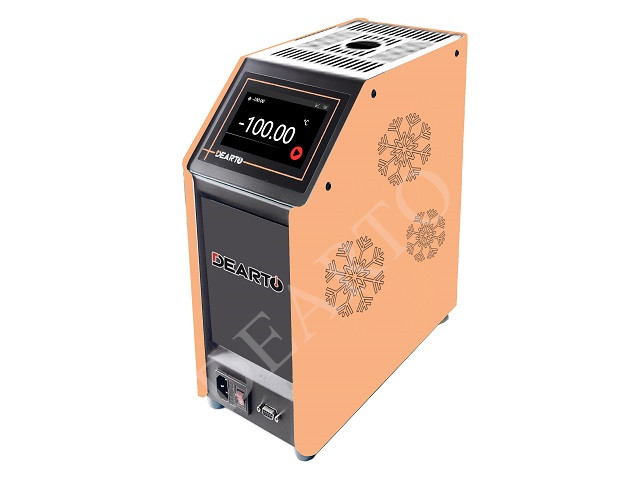

The calibration range of DT-ULT100G Ultra-low temperature dry block calibrator can be from -100℃ to 40℃. The uniform temperature block in the furnace is made of high thermal conductivity aluminum alloy, which can ensure the uniform and stable internal temperature field. The dry block furnace is a very reliable and stable constant temperature source, It can be used for temperature calibration in industrial field or laboratory..

The DT-ULT100G Ultra-low temperature dry body calibrator is designed with full consideration of the user's field application needs. In the case of lightness, portability and speed, it also ensures its stability, consistency and accuracy similar to that of the same type of laboratory equipment. The 7-inch touch LCD screen can display the set temperature, measured temperature, fluctuation, and deviation temperature at the same time, and can perform functions such as segmented temperature control adjustment and temperature measurement deviation correction; the curve display interface can display historical temperature curves to visually view temperature changes Condition.

At present, the DT-ULT100G Ultra- low temperature dry body calibrator is at the international leading level in terms of temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load performance and hysteresis effect. It can be widely used in machinery, shipbuilding, chemical industry, food, electric power, medicine and other industries.

Product Features:

● Support bilingual switching between Chinese and English, and support custom switching between ℃ and ℉.

● Multifunctional smart touch screen: high-definition color touch screen, interactive menu mode, rich display information, easy operation, and real-time display of calibration status.

● Convenient and portable: small size, light weight, strong anti-interference, more suitable for on-site calibration.

● On-demand customization service of soaking blocks: support customizing soaking blocks of different sizes and specifications according to the insertion depth and outer diameter of the tested sensor.

● Protection function: The device has a built-in overheating protection function, which is safe and stable.

● Multi-point correction: supports automatic calibration/correction of multiple temperature points; segmented PID control, supports one-key temperature rise, and fully automatic temperature control.

● Communication function: It has RS-232 communication interface, supports data transmission function, can upload to PC and save data automatically.

Technical Parameters
