| Multi-channel temperature and humidity calibrator |
◇ Introduction ◇ Function◇ Parameter◇ Product order◇ Download◇ Related products
Introduction

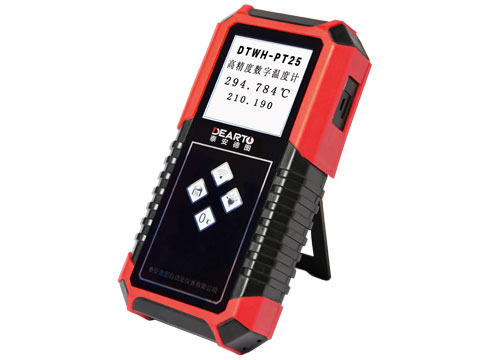

DTWH Handheld Multichannel Thermo-Hygrometer / Temperature Humidity Meter is a high-precision instrument that can be used to accurately measure the relative humidity and temperature of the environment, and the management system performs display analysis.
Function

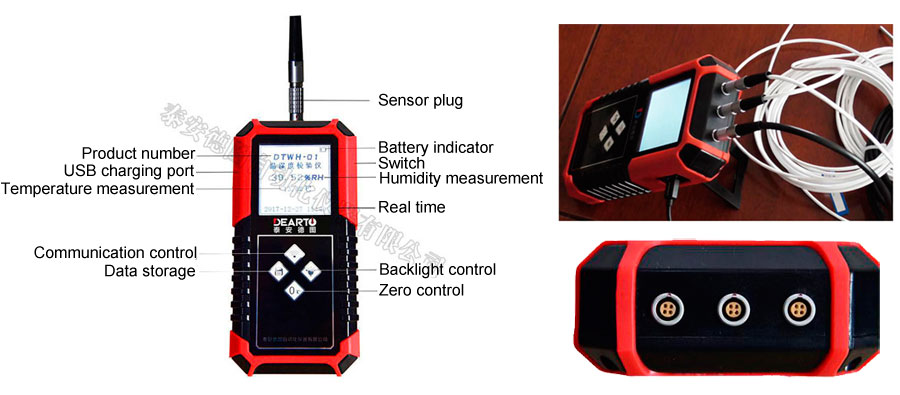

1. The probe of DTWH Multichannel thermo-hygrometer can be connected to a high-precision temperature sensor with fast response, which can quickly and accurately measure.
2. It can display the measured relative humidity value and temperature value at the same time.
3. DTWH Temperature Humidity meter has an accuracy of ± 1.5% RH / 0.8% RH in the entire humidity measurement range.
4. The accuracy of this product is ± 0.1 ℃ in the whole temperature measurement range.
5. This product has a resolution of 0.001 ° C and 0.01% RH.
6. This product is equipped with management software, which can support up to 32 calibrators for simultaneous data collection.
7. This product has a zero mark function to measure the humidity fluctuation.
8. This product has an automatic breathing screen function. The user only needs to charge the battery once a month within the limited charging cycle and frequency of use and functions.
9. Large-screen LCD with backlight.
10. Lithium battery can be recharged, and the charging interface is micro USB port (common with Android phone interface)
11 Ultra-low power consumption, can be used continuously for 48 hours on a single charge.
12. With battery power indication function.
Technical Parameters
| Ambient temperature | 23℃±5℃ |
| Environment humidity | Relative humidity 0% to 95% RH (no condensation) |
| Temperature measurement range | −80℃ ~320℃ |
| Humidity measurement range | 0% RH ~ 100% RH |
| Temperature accuracy | Better than 0.1℃ |
| Humidity accuracy | Better than 1.5% RH |
| Temperature resolution | 0.001℃ |
| Humidity resolution | 0.01% RH |
| Probe response time τ63 | <12S |
| Working temperature of wireless communication module | −10℃~ 50℃（14℉~122℉） |
| Wireless communication transmission distance | Unobstructed about 50m |
| Thermometer storage temperature range | −20℃~60℃（−4℉~140℉） |
| Shell grade | IP50 |
| Main machine temperature coefficient | <1ppm/℃ |
| Data storage capacity | 8GB |
| Power supply | 3.7V lithium battery |
| Charger output voltage | 5V 1000mA |
| Charging cut-off voltage | 4.19V |
| Battery Life | Not less than 2000 charge and discharge cycles |
| Battery capacity | 6800mAH |
| Host size (mm) | 202 (L) X98 (W) X44 (T) |
| Host weight | 305g |
| Probe size (mm) | φ15x83 |
| Probe weight | About 10g |
| Probe material | Polycarbonate |
Selection description:
DTWH handheld temperature humidity meter calibrators use PT100 temperature sensor for temperature measurement, and Rotronic high-precision humidity sensor for humidity measurement.
| Product name | Model | Number of temperature channels | Humidity channels | Accuracy |
| Handheld multi-channel temperature and humidity calibrator | DTWH-01 | / | 1 | <±1.5%RH、<±0.1℃ |
| DTWH-02 | / | 2 | <±1.5%RH、<±0.1℃ | |
| DTWH-03 | / | 3 | <±1.5%RH、<±0.1℃ | |
| DTWH-10 | 1 | / | <±0.1℃、<±0.1℃ | |
| DTWH-20 | 2 | / | <±0.1℃ | |
| DTWH-30 | 3 | / | <±0.1℃ | |
| DTWH-21 | 2 | 1 | <±0.1℃、<±1.5%RH | |
