Introduction

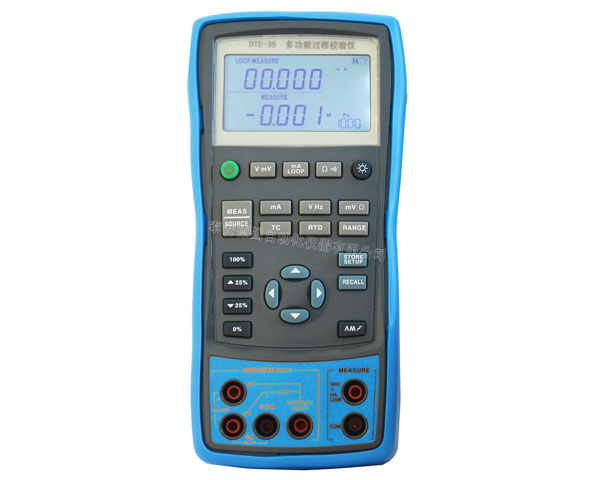

Multifunction process calibrator | DTE-35G  is a multi-function, high-precision portable instrument. It is specially designed for process control, suitable for industrial field debugging, can meet a wide range of work requirements, support the measurement and output of almost all process parameters such as voltage, resistance, current, frequency, thermocouple, thermal resistance The secondary instruments of these.

DTE-35G multifunction calibrator are calibrated accuracy can reach 0 . 02%.

Function

◇ Super protection function: waterproof grade IP67, 220V automatic protection when any signal terminal is wrongly connected;

◇ Measurement / output: voltage, current, frequency, resistance, of which current output supports active and passive;

◇ Simulate thermal resistance and thermocouple in the form of temperature;

◇ Both thermocouple measurement and output provide automatic and manual cold junction temperature compensation;

◇ New thermocouple types can be customized according to customer needs;

◇ Simulate two-wire transmitter;

◇ Accuracy is 0 . 02%, 0 . 05%;

◇ Two isolated channels support simultaneous measurement and output;

◇ Can provide manual stepping, automatic stepping, 0 ～ 100% step and slope output function;

◇ With white LED backlight, with manual backlight adjustment and automatic power off function, suitable for on-site use;

◇ Provide DC24V loop power supply for on-site debugging;

◇ Unique automatic identification of three-wire and four-wire wiring;

◇ Adopt standard 7 # battery, which is convenient for customers to replace and purchase;

◇ APSL high-precision intelligent pressure module can be selected according to customer needs to achieve pressure measurement function;

Technical parameters

Measurement standard:

Output indicators:

Other parameters:

Operating temperature: -10 ℃ ～ 55 ℃

Storage temperature: -20 ℃ ～ 60 ℃

Weight: 650g

Dimensions: 200mm * 96mm * 47mm

Power supply: 6 pieces of 7 # nickel-metal hydride batteries or AC adapter

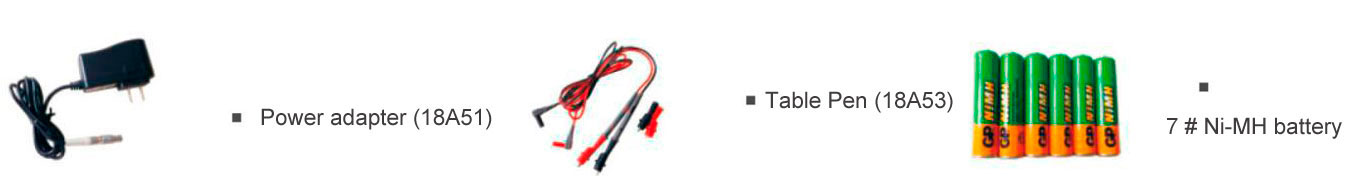

Standard accessories:

Table pen: 18A53 table pen 2 pay

Power adapter: one 18A51 charger.

Optional accessories:

RS232 communication line: 18P01 communication line

Annex:
